Product Introduction

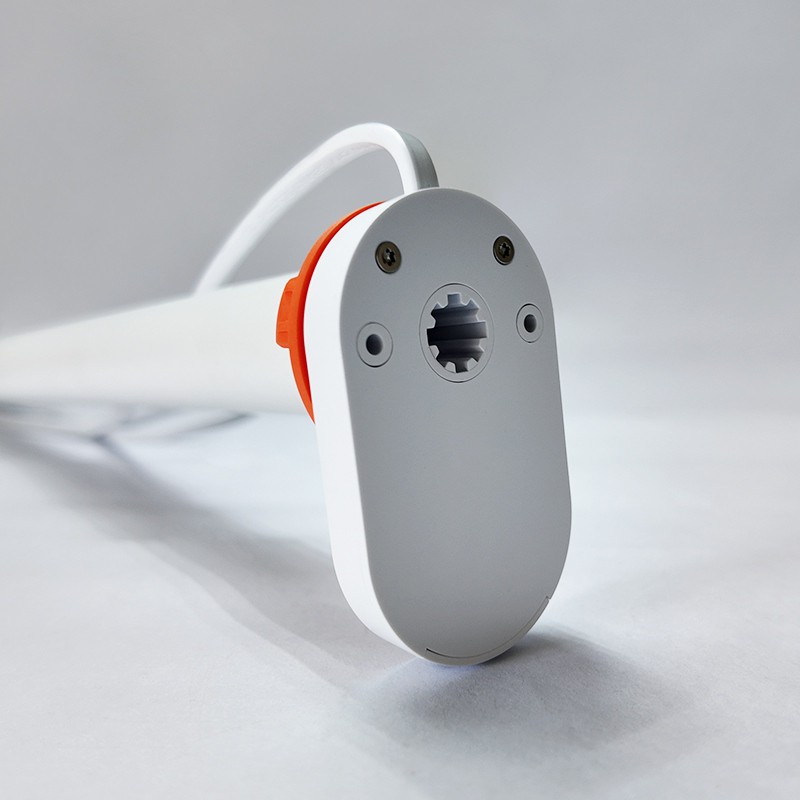

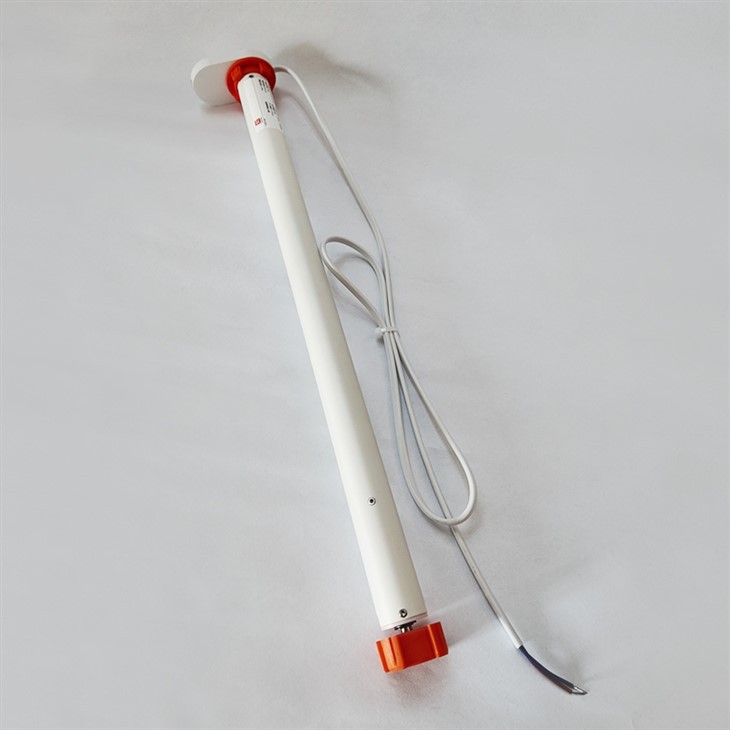

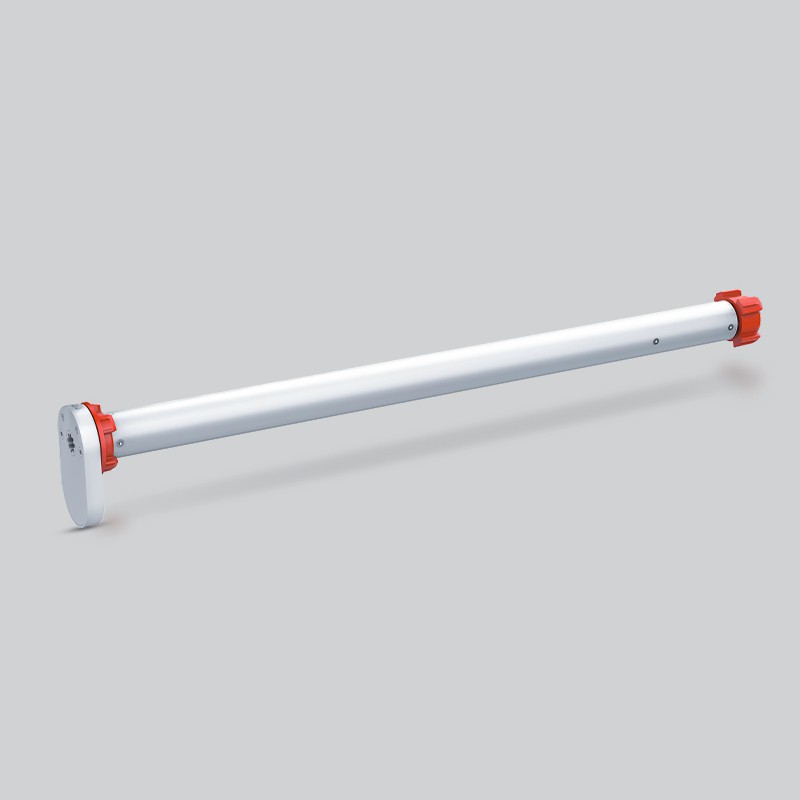

Elevate your home automation with the LONGSAM 25mm ZigBee Tubular Motor. Designed for roller blinds, shutters, and skylights, this motor features a built-in ZigBee module for reliable, low-power communication. When connected to a Tuya-compatible ZigBee gateway, it enables seamless smartphone control and smart scene integration, bringing true intelligence to your window coverings.
|
Item model |
LS25TYZ-1.1/28 |
|
Torque |
1.1N·m |
|
Max load |
4kg |
|
Input voltage |
AC100~240v |
|
Rotational Velocity |
28rpm |
|
Protection level |
IP40 |
|
Frequency |
50/60Hz |
|
Warranty |
5 years |
|
MOQ |
100pcs |
Product Features
Reliable ZigBee Connectivity
Unlike WiFi motors that connect directly to your router, this ZigBee motor creates a stable mesh network. It consumes less power and maintains a reliable connection even in homes with many smart devices. Simply pair it with a Tuya ZigBee gateway to enjoy remote control via the Tuya Smart APP.
Precision Electronic Limit Setting
The motor features advanced electronic stroke limits that can be set directly from the Tuya APP. After a simple one-key clear, you can set the upper and lower limit positions with visual confirmation-the motor rotates once or twice to indicate successful setting. A third intermediate stop point is also available for partial opening control.
Ultra-Quiet Operation & Safety Protection
With an average noise level below 35 decibels, this motor ensures silent operation ideal for bedrooms and nurseries. It also features obstacle detection, automatically stopping when resistance is met, protecting both the motor and your blinds from damage.
FAQ
Q: Do I need a gateway to use this ZigBee motor?
A: Yes. This motor requires a Tuya-compatible ZigBee gateway (sold separately) to connect to your home WiFi network and enable APP control. The motor communicates with the gateway via ZigBee protocol.
Q: Can I still use a physical remote control?
A: Absolutely. The motor supports both ZigBee APP control and traditional RF remote control (433.92MHz), giving you flexibility and a reliable backup option.
Q: What is the maximum load capacity?
A: The 25mm tubular motor typically handles loads up to 4KG, making it suitable for most standard roller blinds and small shutters.
