Product Introduction

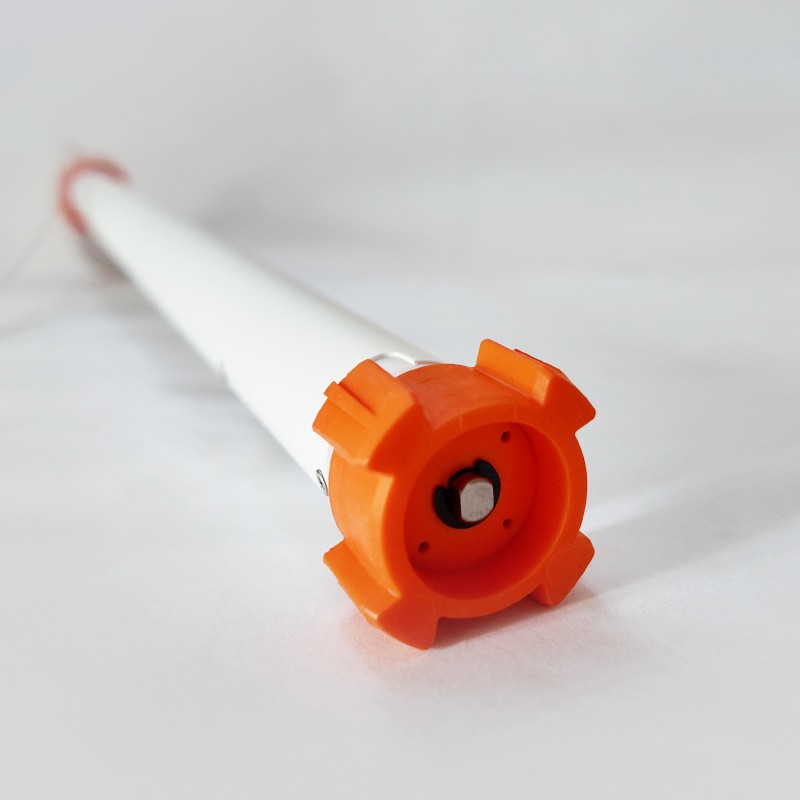

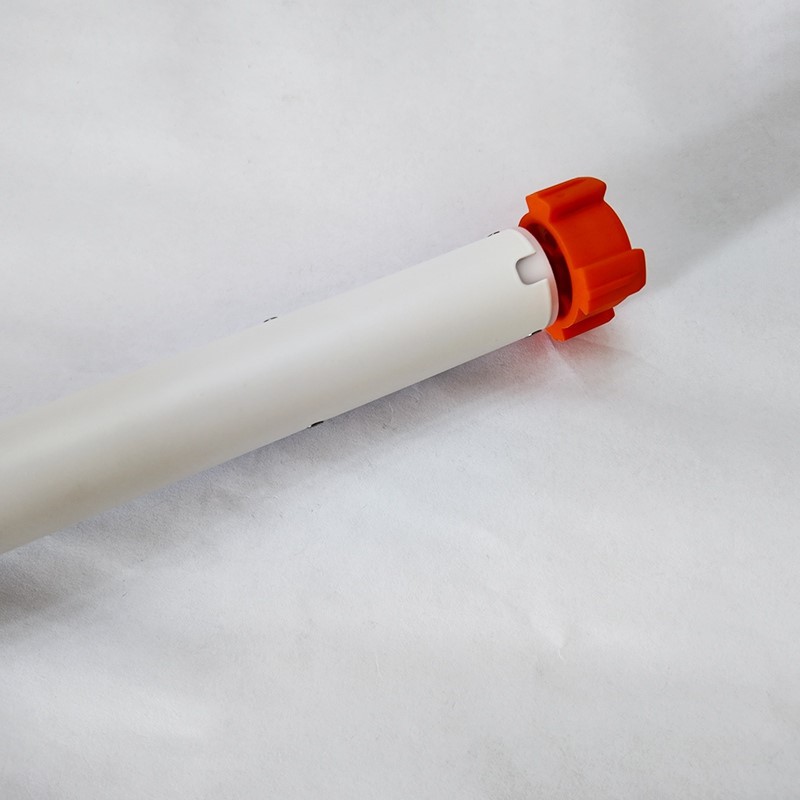

Engineered for intelligent living, the 25mm Blinds Motor combines silent operation with robust performance. It is ideal for automating roller blinds and curtains in hotels, homes, and offices. With a rated torque of up to 1.1 N.m and support for smart platforms, this motor is a versatile solution for modern automation needs.
|
Item model |
LS25R-1.1/28 |
|
Torque |
1.1N·m |
|
Max load |
4kg |
|
Input voltage |
AC100~240v |
|
Rotational Velocity |
28rpm |
|
Protection level |
IP40 |
|
Frequency |
50/60Hz |
|
Warranty |
5 years |
|
MOQ |
100pcs |
Product Features
Ultra-Quiet Operation
Designed with a brushless motor and silent transmission system, the motor operates at noise levels as low as 35dB, ensuring a peaceful environment even during nighttime use.
01
Third Stroke Point Function
In addition to upper and lower limits, the motor supports a third intermediate stop position. This is ideal for scenarios like skylights or shutters where partial opening is desired.
02
Obstacle Detection and Safety Stop
The motor automatically stops when it encounters an obstruction, protecting both the motor and the curtain system from damage.
03
Change Direction Function
The motor allows for easy direction reversal, enabling flexible installation without rewiring.
04
Wide Temperature Range Operation
Rated for operation from -10°C to +50°C, the motor is built to perform reliably in various climates and installation environments.
05
FAQ
Q: What is the maximum continuous operating time?
A: The motor can run continuously for up to 4 minutes, which is sufficient for most standard blind operations.
Q: Can I adjust the motor speed?
A: Yes, the motor allows speed adjustment via remote control. Press and hold the Up + Stop or Down + Stop buttons to switch between speed levels.
Q: How do I change the motor's rotation direction?
A: Press the motor set button for 6 seconds until the red light flashes 6 times. Release the button and the motor will rotate once, confirming the direction change.
Q: Can I use this motor with a 15-channel remote?
A: Yes, the motor is compatible with 15-channel wall-mounted remotes, allowing centralized control of multiple motors.
