Product Introduction

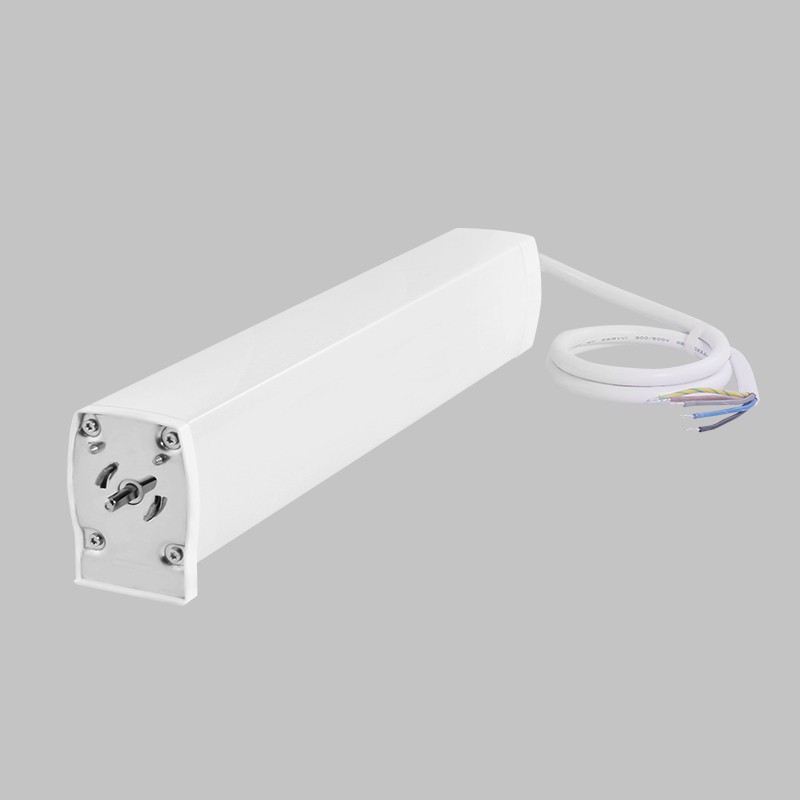

The RS485 Curtain Motor is an advanced smart home automation solution designed for seamless curtain management in residential, commercial, and hospitality settings. Engineered with RS485 communication protocol, this motor enables centralized control and integration with professional automation systems, making it ideal for hotels, offices, and smart homes.
|
Item model |
LS82TV-2.0/14 |
|
Torque |
2.0N·m |
|
Max load |
60kg |
|
Input voltage |
AC100~240V |
|
Rotating speed |
14cm/s |
|
Protection level |
IP40 |
|
Frequency |
50/60Hz |
|
Operating noise |
30dB |
|
Warranty |
5 years |
|
MOQ |
100pcs |
Product Features Explanation
Industry-Standard Compatibility and Flexible Control Pathways
This motor is designed for maximum integration flexibility. Its 5-wire interface supports RS485 for advanced systems, while it remains fully compatible with standard Dooya-code 433MHz RF remotes. It also accepts commands from dry contact switches (momentary or maintained) and high-voltage (110-240V) mechanical switches, making it adaptable to virtually any existing or new control scheme a client may desire.
Built-to-Last Construction and Wide Operational Tolerance
Engineered for longevity, the motor features a robust shell combining aluminum and high-strength plastic. It operates reliably across a broad temperature range from -10°C to +50°C and carries an IP40 ingress protection rating, safeguarding its internal components against dust and larger particles. This ensures consistent performance in diverse indoor climates and conditions.
Smart Self-Diagnostics and Easy Configuration
The motor simplifies setup and maintenance with intelligent features. The automatic limit setting function detects the track length and programs the endpoints upon first power-up. The intuitive keypad on the motor allows installers to easily reverse the motor direction, clear travel limits, or restore factory settings without needing complex tools or software, streamlining the commissioning and service process.
FAQ
Q: What is the maximum number of motors I can connect on one RS485 bus?
A: The RS485 standard typically supports up to 32 unit loads without repeaters. With the 82 Series motors, you can daisy-chain a significant number (often 20+ depending on the specific network configuration and cable length) on a single bus, making it scalable for large projects.
Q: What is the power requirement, and does it need a special power supply?
A: The motor requires an AC100-240V, 50/60Hz power input. The 5-wire cable includes power conductors. It can be powered by a standard mains connection. The RS485 communication wires are low-voltage and should be kept separate from the power lines during installation to prevent interference.
Q: Does Langsen offer technical support for system integration?
A: Yes. As a manufacturer with over a decade of experience and certifications like ISO9001, Langsen provides technical documentation and support for integrators. Our products are also backed by a comprehensive 5-year warranty and a nationwide service network.
