Product Introduction

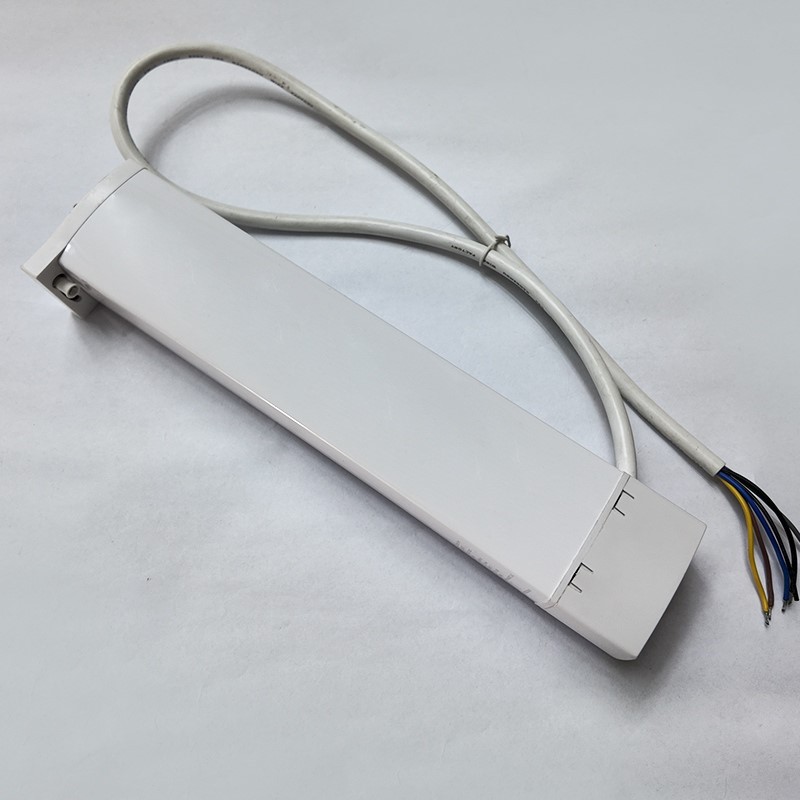

The 5 Wires Tuya Curtain Motor is an innovative smart home automation solution designed to transform traditional curtains into intelligent, automated window treatments. Longsam 82 Series 5-Wire Tuya Curtain Motor is a high-performance, Wi-Fi-enabled smart motor designed for modern automated curtain and shade systems. Featuring a 5-wire connection system and seamless integration with Tuya's smart platform, this motor offers advanced control capabilities through smartphone apps and remote operation.
|
Item model |
LS82TVTW-2.0/14 |
|
Torque |
2.0N·m |
|
Max load |
60kg |
|
Input voltage |
AC100~240v |
|
Rotating speed |
14cm/s |
|
Protection level |
IP40 |
|
Frequency |
50/60Hz |
|
Warranty |
5 years |
|
MOQ |
100pcs |
Key Features
Smart Connectivity & Easy Setup
Tuya Smart App Integration – Quickly connect the motor to your Wi-Fi network using the Tuya Smart app for seamless control from your phone.
Multiple Control Options – Operate via app, RF remote control, dry contact switches.
Auto & Manual Pairing Modes – Simple device pairing with indicator-led guidance for hassle-free installation.
01
Quiet & Powerful Performance
2.0Nm Rated Torque – Handles curtain weights up to 60kg with consistent, reliable movement.
Low Noise Operation – Designed to operate below 35dB, ensuring silent adjustments ideal for bedrooms and quiet spaces.
Three-Speed Adjustment – Choose from different operating speeds to match your preference and curtain type.
02
Flexible Installation & Wiring
5-Wire System – Includes dedicated wires for Live (Brown), Neutral (Blue), Forward (Grey), Reverse (Black), and Earth/Green for safe and flexible installation.
Easy Motor Mounting – Features a locking rod mechanism for secure attachment to compatible curtain track systems.
Wide Voltage Compatibility – Works with 100–240V AC, 50/60Hz power supplies worldwide.
03
Enhanced User Experience
Precision Percentage Control – Set exact curtain positions (e.g., 50%, 75%) via app or remote.
Hand-Pull Function – Manually adjust curtains during power outages without damaging the motor.
Durable & Safe – Built with quality components, IP40 protection, and complies with EMC standards for stable performance.
04
Smart Ecosystem Compatibility
Works seamlessly with Tuya-based platforms and can integrate with other smart home systems through compatible hubs.
Supports scenario automation-schedule opening/closing, link with other smart devices.
05
FAQ
Q1: What is the maximum load capacity of the 82 Series motor?
A: It can handle up to 60kg (approx. 132 lbs) of curtain weight, making it suitable for most residential and light commercial applications.
Q2: Does this motor require a neutral wire?
A: Yes, the motor uses a 5-wire configuration including Live, Neutral, Forward, Reverse, and Earth wires for full functionality and safety.
Q3: Can I control the motor without Wi-Fi?
A: Yes. The motor can be operated via the included RF remote control, wall switches, or manual pulling. Wi-Fi is only required for app-based.
Q4: Is the Tuya Smart app available globally?
A: Yes, the Tuya Smart app can be downloaded from major app stores and supports multiple languages and regions.
Q5: What is the noise level during operation?
A: The motor operates at under 35dB, which is quieter than a whisper, ensuring minimal disturbance.
Q6: Can I use this motor with existing curtain tracks?
A: Yes, it is compatible with standard curtain track systems. The mounting mechanism is designed for easy adaptation to common track types.
Q7: How do I reset or re-pair the motor?
A: Press the set button three times shortly, then long-press until the indicator flashes. Follow the app instructions to re-enter pairing mode.
Q8: What is the warranty period?
A: Langsen provides a 5-year quality assurance warranty on the motor, with lifetime maintenance support.
The 82 Series 5-Wire Tuya Curtain Motor combines power, silence, and smart technology to deliver a premium window automation experience. Whether you're upgrading your home or integrating into a larger smart building system, this motor offers reliability, ease of use, and seamless connectivity-all from a brand with over a decade of expertise in smart curtain solutions.
