Product Introduction

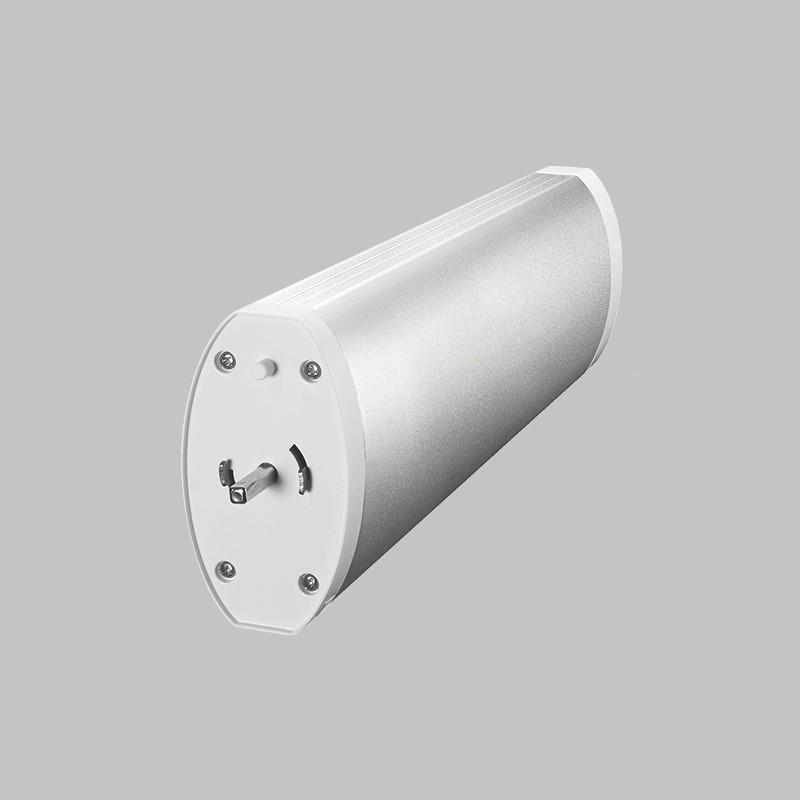

Introducing our high Torque 5-Wire RS485 Curtain Motor - designed for seamless integration into building automation and smart home systems. With robust torque and multiple control interfaces, this motor automates heavy curtains with precision and reliability. Whether for hotels, offices, or luxury residences, it delivers professional-grade performance and flexibility.
|
Item model |
LS720TV-2.5/15 |
|
Torque |
2.5N·m |
|
Max load |
100kg |
|
Input voltage |
AC100~240v |
|
Rotating speed |
14cm/s |
|
Protection level |
IP40 |
|
Frequency |
50/60Hz |
|
Warranty |
5 years |
|
MOQ |
100pcs |
Product Features
Powerful Torque for Heavy-Duty Use
With a rated torque of 2.5N·m and a load capacity of up to 110KG, this motor handles even the most demanding curtain installations with ease.
01
Three Control Modes in One
Supports RS485 communication, dry contact switching, and high-voltage direct control, giving you maximum flexibility for any wiring scenario.
02
Simple Dry Contact Wiring
The motor supports multiple dry contact modes, including momentary and latching control, easily configurable by repeating the setup process.
03
Durable and Safe Design
Built with flame-retardant materials and rated IP40 for protection against dust and solids, ensuring safe and long-lasting performance in any environment.
04
FAQ
Q: What are the different dry contact modes?
A: The motor supports multiple modes including forward/pause, reverse/pause, and forward/reverse/pause, which can be cycled through by repeating the dry contact setup process.
Q: Can I use this motor without a central control system?
A: Yes, you can control it with the included 433MHz RF remote or wire it directly to standard wall switches using the high-voltage control method.
Q: How do I wire the motor for RS485 control?
A: The motor includes a 5-wire cable for RS485 communication. Detailed wiring diagrams are provided in the user manual for easy installation.
Q: Can I control multiple motors together?
A: Yes, with RS485 you can connect and control multiple motors simultaneously through a central control system.
